# Windows Server 链路聚合配置

### 1. 创建聚合组

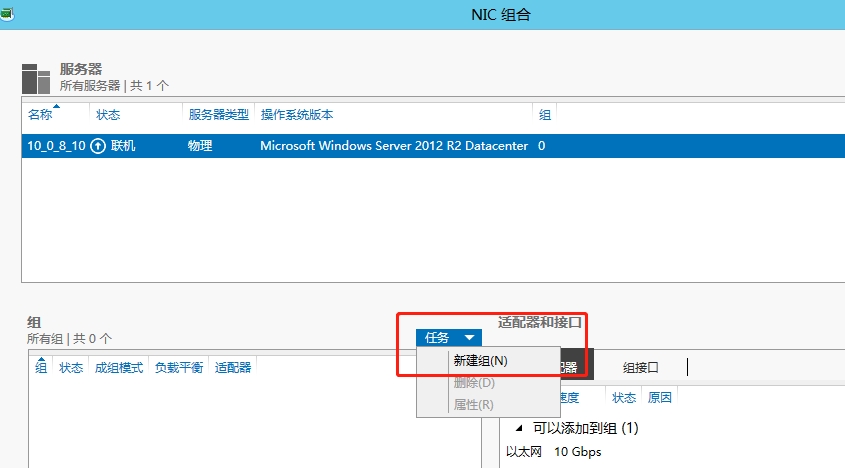

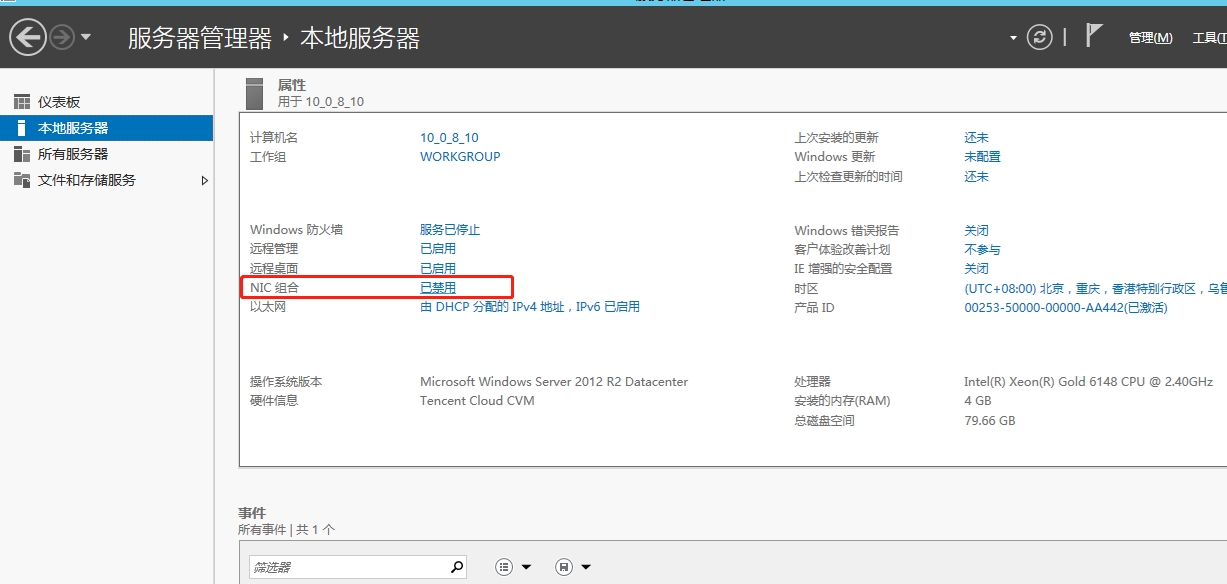

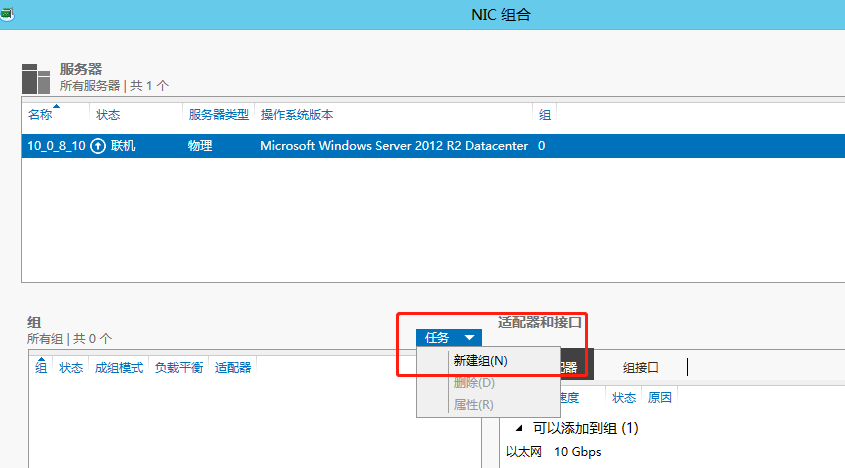

打开服务器管理器=>本地服务器=>NIC组合

![image-20220617145935575](https://pic.chjina.com/2022/07/13/20220617145942.png)

![image-20220617150238274](https://pic.chjina.com/2022/07/13/20220617150238.png)

在组名称中设置链路聚合网卡的名称

### 2. 添加聚合网卡

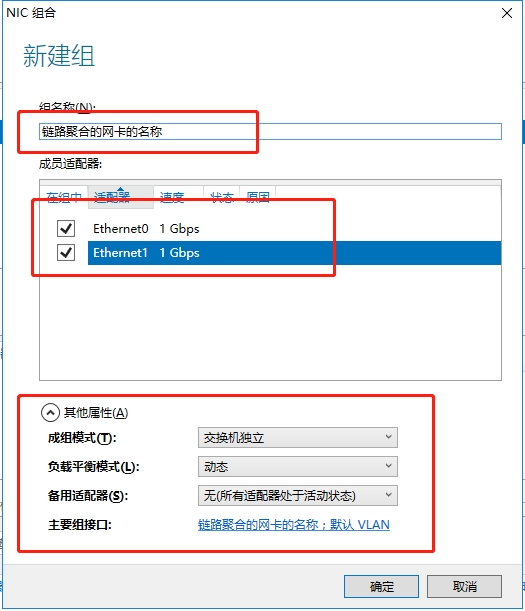

2.1成员适配器中选中需要聚合的网卡，

![image-20220617152742554](https://pic.chjina.com/2022/07/13/20220617152742.png)

成员模式：

* 交换机独立模式：一般正常的配置这个，交换机端可不用配置链路聚合
* 静态成组模式：交换机需静态配置链路聚合
* LACP模式：交换机端需配置动态链路聚合

点击确定即可。

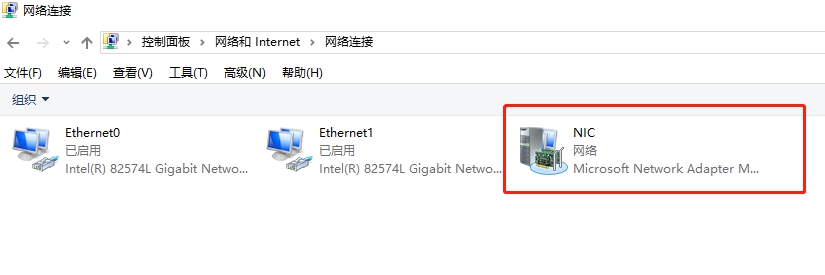

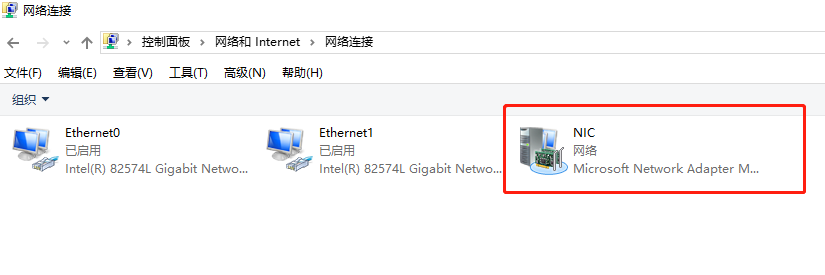

然后在网络适配器里就可以看见新创建的聚合网卡了。

![image-20220617153326285](https://pic.chjina.com/2022/07/13/20220617153326.png)

### 3. 配置网络信息

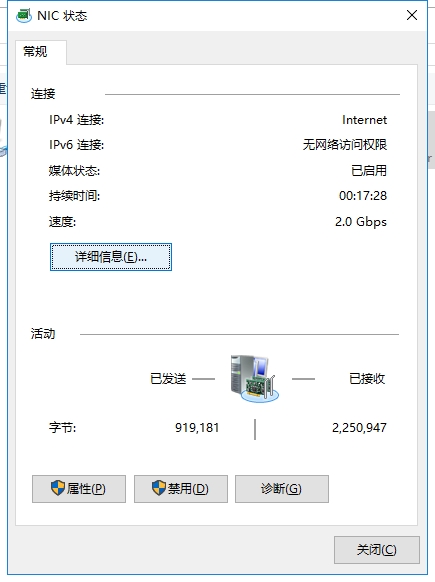

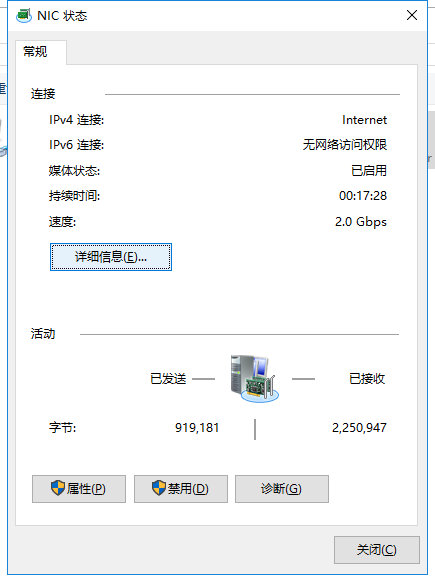

配置新的聚合网卡IP地址等信息。 速度显示两个物理网口的合

![image-20220617154846309](https://pic.chjina.com/2022/07/13/20220617154846.png)


---
